Capacitor Discharge Stud
All structural applications demand weld studs that keep things together. Some of them, however, need high performance in a light, aesthetically pleasing package.
Obtain improved functionality without the weight using Delta Stud Weld’s capacitator discharge studs. We’re a top provider of fastening solutions for demanding environments, and our area of expertise is the rapid turnaround of custom CD weld studs fabricated from domestically supplied materials.
Capacitor discharge studs are a fastener used in metal fabrication and construction applications. CD Studs are designed to be welded onto metal surfaces. Made of steel or stainless steel, CD studs are durable and high-quality and can be quickly welded onto metal surfaces. With automated processes, they are a good choice for high-volume production.
Other benefits include:
- Weld strength
- Good for rapid and robust attachment
- Simple for the welding process
Types of CD Studs

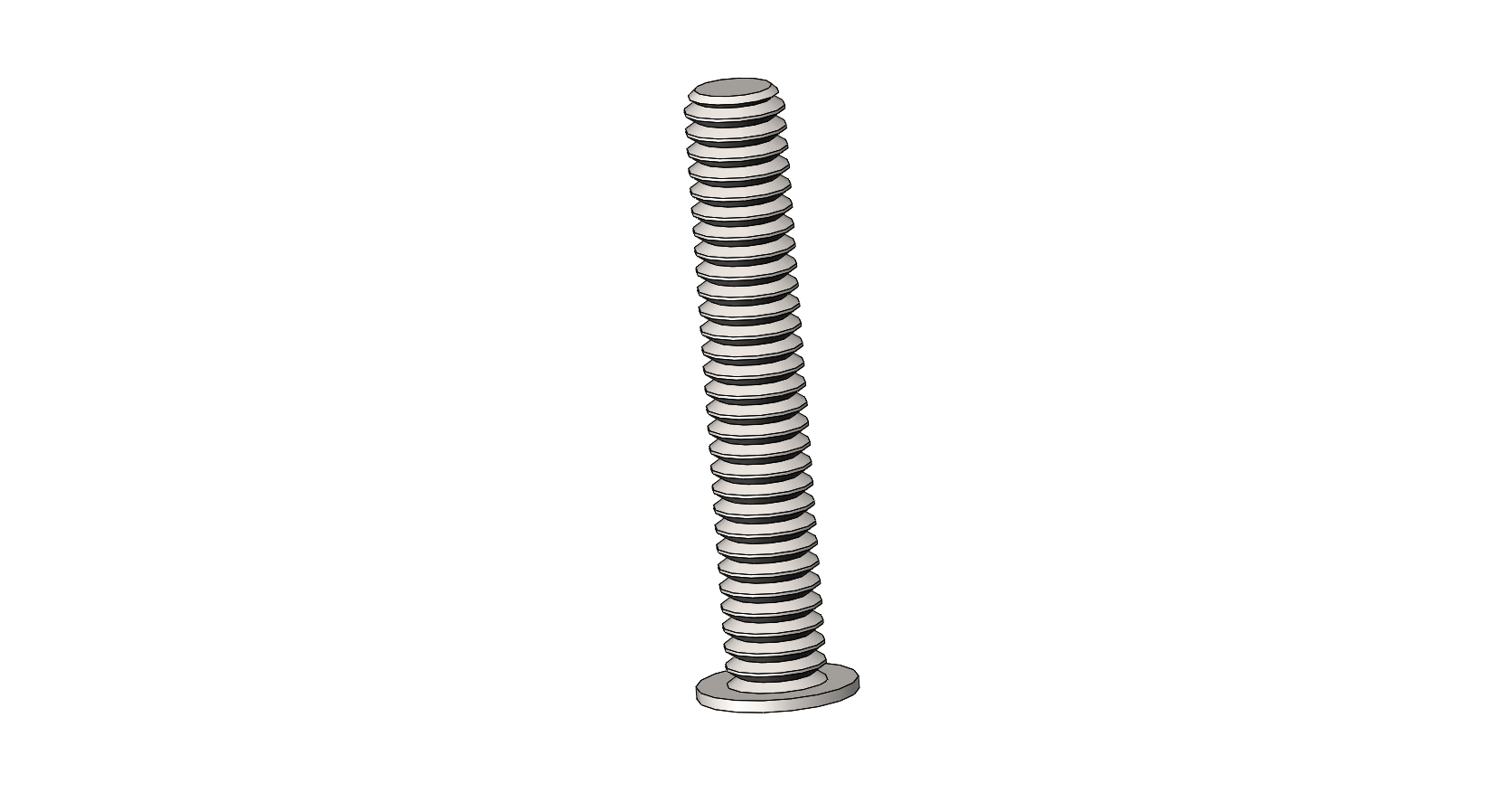

Capacitor Discharge Stud
MATERIAL: LOW CARBON STEEL, STAINLESS STEEL, ALUMINUM
PLATING: ALL MILD STEEL ARE COPPER PLATED
NOTE: METRIC SIZES ALSO AVAILABLE
STUD | ||
D | FD | Min. L |
2-56 | .156 | .250 |
4-40 | .187 | .250 |
6-32 | .218 | .250 |
8-32 | .250 | .250 |
10-32 | .250 | .250 |
10-24 | .250 | .250 |
1/4-20 | .312 | .375 |
5/16-18 | .380 | .500 |
3/8-16 | .437 | .500 |
Capacitor Discharge Stud
MATERIAL: LOW CARBON STEEL, STAINLESS STEEL, ALUMINUM
PLATING: ALL MILD STEEL ARE COPPER PLATED
STUD | |||
D | FD | Min. L | |
|
3/32 |
.187 |
.250 |
.115 |
|
.218 |
.250 |
|
1/8 |
.218 |
.250 |
.141 |
|
.250 |
.250 |
|
5/32 |
.250 |
.250 |
.161 |
|
.250 |
.250 |
|
3/16 |
.250 |
.250 |
.217 |
|
.312 |
.250 |
|
1/4 |
.325 |
.250 |
.273 |
|
.375 |
.375 |
|
5/16 |
.375 |
.500 |
|
3/8 |
.445 |
.500 |
Capacitor Discharge Stud
NOTE: METRIC SIZES ALSO AVAILABLE
MATERIAL: LOW CARBON STEEL, STAINLESS STEEL, ALUMINUM
PLATING: ALL MILD STEEL ARE COPPER PLATED
STUD | ||
D | BD | Min. L |
4-40 | .112 | .250 |
6-32 | .137 | .250 |
8-32 | .163 | .250 |
10-32 | .187 | .250 |
10-24 | .187 | .250 |
1/4-20 | .250 | .375 |
15/16-18 | .312 | .500 |
3/8-16 | .374 | .500 |
Capacitator Discharge Studs Process
When you need high-quality capacitator discharge studs, Delta Stud Weld is here to help. We proficiently fabricate these fastening devices in many sizes and configurations from various material types supplied by reliable United States of America-based mills.
Capacitor discharge stud welding, or CD welding, is a semi-automatic arc welding process performed without ferrules or flux. Lasting only milliseconds, this process can be undertaken on thin sheets of metal without pronounced distortion, burn through, or discoloration.
Benefits of CD studs
CD weld studs, or capacitor discharge weld studs, are small diameter fasteners joined to thin sheet metal. A CD stud can be shot to the attachment side without reverse-side marking, unlike traditional fabrication methods that require drilling a hole to insert a bolt for an attachment point.
This generates a clean, aesthetically appealing look without compromising quality or straightness. Additional benefits of CD studs include:
|
|
Benefits of CD Stud Welding
This welding process creates high-integrity welds with penetration so slight that dissimilar metals are joined without metallurgical problems. Additional advantages of CD stud welding include:
|
|
CD Weld Stud Material Types
Delta Stud Weld has an in-house team of knowledgeable engineers, gifted welders, and keen-eyed inspectors. We can supply CD weld studs and flanged CD weld studs manufactured from an array of material types.
|
|
Inspectors use precision gauges to verify conformance with applicable industry standards or customer requirements. All raw material is checked for accuracy, and Material Test Reports can be supplied with shipments upon request. Orders are audited before load out.
